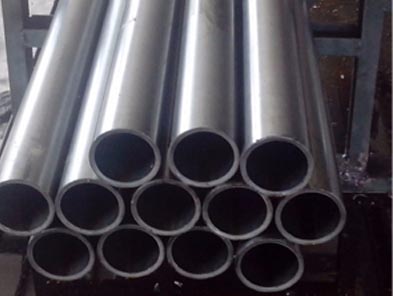

ASTM B515 Incoloy 800H Tube

Home ASTM B515 Incoloy 800H Welded Tubes

ASTM B515 Incoloy 800H Welded Tube Supplier and Exporter | UNS N08810 | DIN 1.4958

Leoscor Alloy Pipes is a trusted manufacturer, stockist, supplier, and exporter of ASTM B515 Incoloy 800H Welded Tubes. We provide high-quality Incoloy 800H Tubes designed for high-temperature applications requiring excellent creep strength, oxidation resistance, and long-term durability.

Incoloy 800H Welded Tubes are nickel-iron-chromium alloy tubes with controlled carbon content that provides improved creep and rupture strength compared with standard Incoloy 800. These tubes maintain reliable mechanical properties during prolonged exposure to elevated temperatures.

ASTM B515 Incoloy 800H Welded Tubes are manufactured according to ASTM B515 and ASME SB515 specifications and are available in different sizes, dimensions, shapes, and customized requirements.

Leoscor Alloy Pipes supplies ASTM B515 Incoloy 800H Welded Tubes in customized sizes, specifications, and finishes. Contact us today to request a quotation.

Equivalent Names of Incoloy 800H Welded Tubes

Equivalent Name Standard / Country Details
ASTM B515 Incoloy 800H Welded Tube ASTM Standard Specification for welded nickel-iron-chromium alloy tubes.
ASME SB515 Incoloy 800H Welded Tube ASME Standard Equivalent ASME specification.
UNS N08810 Tubes USA (Unified Numbering System) Material designation for Incoloy 800H.
JIS NCF 1 Japan Comparable grade for Incoloy 800H.
DIN 1.4958 Tubes Europe (DIN/EN Standard) European material number for Incoloy 800H.

Key Features of Incoloy 800H Welded Tubes

  • Excellent creep and rupture strength
  • High-temperature oxidation resistance
  • Good corrosion resistance
  • Resistance to carburization
  • Excellent weldability
  • Good thermal stability
  • Long service life

Standard Specifications of ASTM B515 Incoloy 800H Tube

Standard specifications for ASTM B515 Incoloy 800H Tube. If any specification is not mentioned here, you can contact us. We also manufacture and export custom specifications as per client’s requirements.

Specifications Details
Specifications ASTM B515 / ASME SB515
Dimensions ASTM, ASME and API
Size 1/8″ NB to 30″ NB
Specialized In Large Diameter Size
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type Welded / ERW / Fabricated / LSAW Tubes
Form Round, Square, Rectangular, Hydraulic Tubes
Length Single Random, Double Random & Cut Length
End Plain End, Beveled End, Threaded End

Incoloy 800H Welded Tube - Industries & Applications

Our pipes and tubes are used in a wide range of applications and various industries. Below are a few of them:

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Sugar Industries

Types of ASTM B515 Incoloy 800H Welded Tube

Incoloy Alloy 800H ASTM B515 Welded Tube Incoloy ASTM B515 Welded Tube
Incoloy 800H B515 Welded Tube Incoloy Alloy 800H ASTM B515 ERW Tube
Incoloy ASTM B515 ERW Tube Incoloy 800H B515 ERW Tube
Incoloy Alloy 800H ASTM B515 Fabricated Tube Incoloy ASTM B515 Fabricated Tube
Incoloy 800H B515 Fabricated Tube Incoloy Alloy 800H ASTM B515 LSAW Tube
Incoloy ASTM B515 LSAW Tube Incoloy 800H B515 LSAW Tube
Incoloy 800H B515 Tube Incoloy Alloy NCF 800H Tubes
Incoloy Alloy UNS N08810 Tubes Incoloy DIN 1.4958 Tube

Incoloy 800H ASTM B515 Welded Tube Chemical Composition

Grade ASTM B515 Incoloy 800H
min max
C 0.05 0.1
Mn 1.0
Si 1.0
P
S 0.015
Cr 19.0 23.0
Ni 30.0 35.0
Cu 0.75
Fe 39.5
Al 0.15 0.60
Ti 0.15 0.60

ASTM B515 Incoloy 800H Welded Tube Mechanical Properties

Grade ASTM B515 Incoloy 800H
Tensile Strength (MPa) min Psi – 75000 , MPa – 520
Yield Strength 0.2% Proof (MPa) min Psi – 30000 , MPa – 205
Elongation (% in 50mm) min 30%

Incoloy 800H Welded Tube Physical Properties

Grade ASTM B515 Incoloy 800H
Density 7.94 g/cm3
Melting Point 1385 °C (2525 °F)

Incoloy ASTM B515 800H Welded Tube Equivalent Grades

Grade ASTM B515 Incoloy 800H
UNS No N08810
Old British BS NA 15(H)
En X5NiCrAlTi31-20
Euronorm No 1.4958
Name
AFNOR Z8NC33-21
OR XH32T
Japanese JIS NCF 800H
GOST ЭИ670

Incoloy 800H Welded Tube Price List

Leoscor Alloys is one of the most competitive suppliers of pipes and tubes from India. Our prices for ASTM B515 Incoloy 800H Tube are very competitive.

Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Leoscor Alloys maintains a stock of all standard items and can export them at best price for ASTM B515 Incoloy 800H Welded Tubes.

ASTM B515 Incoloy 800H Welded Tube Stock Availability

We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for ASTM B515 Incoloy 800H Tube.
