ASTM B705 Incoloy 825 Welded Tube Supplier and Exporter | UNS N08825 & DIN 2.4858 | Leoscor Alloy Pipes
ASTM B705 Incoloy 825 Welded Tubes supplied by Leoscor Alloy Pipes are nickel-iron-chromium alloy welded tubes designed for applications requiring excellent corrosion resistance, high mechanical strength, and reliable performance in aggressive industrial environments.
Incoloy 825 Welded Tubes contain nickel, chromium, molybdenum, copper, and titanium as major alloying elements. The combination of these elements provides excellent resistance against pitting, crevice corrosion, oxidation, and chemical attack. These tubes are suitable for applications involving acidic media, seawater, and high-corrosion environments.
Leoscor Alloy Pipes is a trusted manufacturer, stockist, supplier, and exporter of ASTM B705 Incoloy 825 Welded Tubes, available in different sizes, dimensions, shapes, and customized specifications according to industrial requirements.
ASTM B705 Incoloy 825 Welded Tubes are nickel alloy welded tubes manufactured according to ASTM B705 specifications for applications requiring superior corrosion resistance, durability, and long-term service performance.
These tubes are designed to withstand harsh operating conditions involving chemical processing, marine environments, and industrial systems. The addition of molybdenum improves resistance against pitting and crevice corrosion, while chromium enhances oxidation resistance.
The material is commonly identified as ASTM B705 Incoloy 825 Welded Tubes, UNS N08825 Tubes, and DIN 2.4858 Tubes.
Leoscor Alloy Pipes supplies premium-quality Nickel Alloy Welded Tubes including ASTM B705 Incoloy 825 Welded Tubes in customized sizes, specifications, and finishes. Contact us today to discuss your requirements and get a competitive quotation.

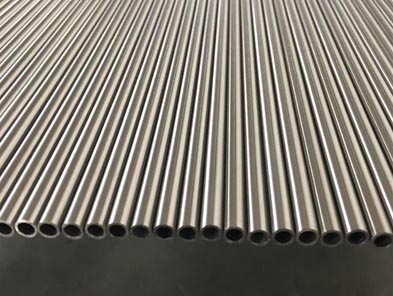

ASTM B705 Incoloy 825 Welded Tube
Equivalent Names of ASTM B705 Incoloy 825 Welded Tubes
| Equivalent Name | Standard / Country | Explanation |
|---|---|---|
| ASTM B705 Incoloy 825 Welded Tubes | ASTM Standard | Specification designation for Incoloy 825 welded tubes. |
| UNS N08825 Tubes | USA (Unified Numbering System) | Material designation used for Incoloy 825 Tubes. |
| DIN 2.4858 Tubes | Germany / Europe | European material number for Incoloy 825 Tubes. |
Key Features of Incoloy 825 Welded Tubes
- Excellent resistance to pitting and crevice corrosion
- Superior corrosion resistance in acidic environments
- Good oxidation resistance
- High mechanical strength
- Excellent weldability
- Resistance to chemical attack
- Reliable performance in harsh industrial conditions
- Long service life
Standard Specifications of ASTM B705 Incoloy 825 Tube
Standard specifications for ASTM B705 Incoloy 825 Tube. If any specification is not mentioned here, you can contact us. We also manufacture and export custom specifications as per client’s requirements.
| Specifications | Details |
|---|---|
| Specifications | ASTM B705 / ASME SB705 |
| Dimensions | ASTM, ASME and API |
| Size | 1/8″ NB to 30″ NB |
| Specialized In | Large Diameter Size |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Welded / ERW / Fabricated / LSAW Tubes |
| Form | Round, Square, Rectangular, Hydraulic Tubes |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded End |
Incoloy 825 Welded Tube - Industries & Applications
Our pipes and tubes are used in a wide range of applications and various industries. Below are a few of them:
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Get Quote for Your Requirement
Contact Leoscor Alloys Pipes for high quality industrial pipes and tubes. Mail- info@leoscoralloypipes.com
Types of ASTM B705 Incoloy 825 Welded Tube
| Incoloy Alloy 825 ASTM B705 Welded Tube | Incoloy ASTM B705 Welded Tube |
| Incoloy 825 B705 Welded Tube | Incoloy Alloy 825 ASTM B705 ERW Tube |
| Incoloy ASTM B705 ERW Tube | Incoloy 825 B705 ERW Tube |
| Incoloy Alloy 825 ASTM B705 Fabricated Tube | Incoloy ASTM B705 Fabricated Tube |
| Incoloy 825 B705 Fabricated Tube | Incoloy Alloy 825 ASTM B705 LSAW Tube |
| Incoloy ASTM B705 LSAW Tube | Incoloy 825 B705 LSAW Tube |
| Incoloy 825 B705 Tube | Incoloy Alloy NCF 825 Tubes |
| Incoloy Alloy UNS N08825 Tubes | Incoloy DIN 2.4858 Tube |
Incoloy 825 ASTM B705 Welded Tube Chemical Composition
| Grade | ASTM B705 Incoloy 825 | |
|---|---|---|
| min | max | |
| C | – | 0.05 |
| Mn | – | 1.0 |
| Si | – | 0.5 |
| P | – | – |
| S | – | 0.03 |
| Cr | 19.5 | 23.5 |
| Ni | 38.0 | 46.0 |
| Cu | 1.5 | 3.0 |
| Fe | 22.0 | – |
| Mb | 2.5 | 3.5 |
| Al | – | 0.2 |
| Ti | 0.6 | 1.2 |
ASTM B705 Incoloy 825 Welded Tube Mechanical Properties
| Grade | ASTM B705 Incoloy 825 | |
|---|---|---|
| Tensile Strength (MPa) min | Psi – 80000 , MPa – 550 | |
| Yield Strength 0.2% Proof (MPa) min | Psi – 32000 , MPa – 220 | |
| Elongation (% in 50mm) min | 30% | |
Incoloy 825 Welded Tube Physical Properties
| Grade | ASTM B705 Incoloy 825 | |
|---|---|---|
| Density | 8.14 g/cm3 | |
| Melting Point | 1400 °C (2550 °F) | |
Incoloy 825 Welded Tube Price List
Leoscor Alloys is one of the most competitive suppliers of pipes and tubes from India. Our prices for ASTM B705 Incoloy 825 Tube are very competitive.
Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Leoscor Alloys maintains a stock of all standard items and can export them at best price for ASTM B705 Incoloy 825 Welded Tubes.
ASTM B705 Incoloy 825 Welded Tube Stock Availability
We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for ASTM B705 Incoloy 825 Tube.
