API 5L Welded Carbon Steel Pipes Supplier and Exporter | Leoscor Alloy Pipes

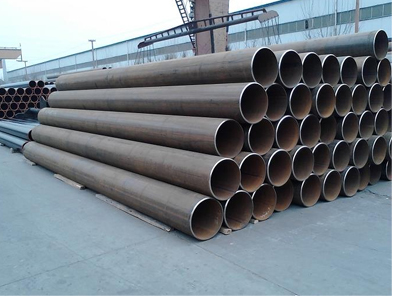

API 5L Welded Pipes are carbon steel line pipes manufactured according to API 5L specifications for the transportation of oil, gas, water, and other fluids. These pipes are widely used in pipeline systems where strength, durability, and cost-effective solutions are required.
Leoscor Alloy Pipes is a trusted supplier, stockist, and exporter of API 5L Welded Pipes, offering a wide range of sizes, grades, and specifications. Our welded pipes are available in different manufacturing forms to meet the requirements of various industries worldwide.
API 5L Welded Pipes are carbon steel line pipes manufactured by forming steel plates or coils and joining them through welding processes. These pipes are produced according to American Petroleum Institute (API) 5L standards and are suitable for pipeline transportation applications.
Welded API 5L Pipes provide excellent strength, dimensional accuracy, and durability for oil and gas transmission systems. They are available in different types, including ERW (Electric Resistance Welded), SAW (Submerged Arc Welded), and LSAW (Longitudinal Submerged Arc Welded) pipes depending on application requirements.
These pipes are available in various sizes, wall thicknesses, and API 5L grades to support different industrial and pipeline applications.
Key Benefits of API 5L Welded Pipes
API 5L Welded Carbon Steel Pipes supplied by Leoscor Alloy Pipes offer the following advantages:
- High Strength: Suitable for oil, gas, and fluid transportation applications.
- Cost-Effective Solution: Provides economical performance for large-scale pipeline projects.
- Excellent Weldability: Allows easy fabrication and installation.
- Wide Size Availability: Available in various diameters, wall thicknesses, and lengths.
- Multiple Manufacturing Options: ERW, SAW, LSAW, and other welded forms available.
- Reliable Performance: Designed for demanding industrial environments.
- Custom Specifications: Supplied according to project requirements.
API 5L Welded Carbon Steel Pipe Specifications
Standard specifications for stainless steel API 5L Welded Pipe. If any specification is not mentioned here, you can contact us. We also manufacture and export any custom specification as per clients requirement.
| Standard | API SPEC 5L |
| Specification | 114-914MM*4-60MM |
| Diameter | 114MM-914MM |
| Special pipe | Regular and special thick-walled steel pipe, maximum thickness of up to 60MM |
| Process | Hot rolled and hot expanded |
| Type | Welded steel pipe |
| Thickness | 4MM-60MM |
| Length | As your requirements |
| Material | API 5L GR.B, X42, X52, X60 |
API 5L Welded Carbon Steel Pipe - Industries & Applications
Our pipes and tubes are used in a wide range of applications and various industries. Below are a few of them:
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Get Quote for Your Requirement
Contact Leoscor Alloys Pipes for high quality industrial pipes and tubes. Mail- info@leoscoralloypipes.com
Types of API 5L Welded CS Pipe
| API 5L GR.B PSL 1 Welded Pipes | API 5L X 42 PSL 1 Welded Pipes |
| API 5L X 46 PSL 1 Welded Pipes | API 5L X 52 PSL 1 Welded Pipes |
| API 5L X 56 PSL 1 Welded Pipes | API 5L X 60 PSL 1 Welded Pipes |
| API 5L X 65 PSL 1 Welded Pipes | API 5L X 70 PSL 1 Welded Pipes |
| API 5L GR.B PSL 2 Welded Pipes | API 5L X42 PSL 2 Welded Pipes |
| API 5L X46 PSL 2 Welded Pipes | API 5L X52 PSL 2 Welded Pipes |
| API 5L X56 PSL 2 Welded Pipes | API 5L X60 PSL 2 Welded Pipes |
| API 5L X65 PSL 2 Welded Pipes | API 5L X70 PSL 2 Welded Pipes |
Welded API 5L Carbon Steel Pipe Chemical Composition
| Grade | PSL 1 | |||
|---|---|---|---|---|
| C (Max) | Mn (Max) | P (Max) | S (Max) | |
| CL I | 0.21 | 0.60 | 0.30 | 0.30 |
| CL II | 0.21 | 0.60 | 0.30 | 0.30 |
| A | 0.22 | 0.90 | 0.30 | 0.30 |
| B | 0.26 | 1.20 | 0.30 | 0.30 |
| X42 | 0.26 | 1.30 | 0.30 | 0.30 |
| X46 | 0.26 | 1.40 | 0.30 | 0.30 |
| X52 | 0.26 | 1.40 | 0.30 | 0.30 |
| X56 | 0.26 | 1.40 | 0.30 | 0.30 |
| X60 | 0.26 | 1.40 | 0.30 | 0.30 |
| X65 | 0.26 | 1.45 | 0.30 | 0.30 |
| X70 | 0.26 | 1.65 | 0.30 | 0.30 |
| Grade | PSL 2 | |||
|---|---|---|---|---|
| C (Max) | Mn (Max) | P (Max) | S (Max) | |
| B | 0.22 | 1.20 | 0.25 | 0.15 |
| X42 | 0.22 | 1.30 | 0.25 | 0.15 |
| X46 | 0.22 | 1.40 | 0.25 | 0.15 |
| X52 | 0.22 | 1.40 | 0.25 | 0.15 |
| X56 | 0.22 | 1.40 | 0.25 | 0.15 |
| X60 | 0.22 | 1.40 | 0.25 | 0.15 |
| X65 | 0.22 | 1.45 | 0.25 | 0.15 |
| X70 | 0.22 | 1.65 | 0.25 | 0.15 |
| X80 | 0.22 | 1.90 | 0.25 | 0.15 |
API 5L Welded CS Pipe Mechanical Properties
| PSL 1 | ||||
|---|---|---|---|---|
| Grade | Tensile Strength Mpa(psi) min | Yield Strength Mpa(psi) min | ||
| Psi X 1000 | Mpa | Psi X 1000 | Mpa | |
| CL I | 45 | 310 | 25 | 172 |
| CL II | ||||
| A | 48 | 331 | 30 | 207 |
| B | 60 | 414 | 35 | 241 |
| X42 | 60 | 414 | 42 | 290 |
| X46 | 63 | 434 | 46 | 317 |
| X52 | 66 | 455 | 52 | 359 |
| X56 | 71 | 490 | 56 | 386 |
| X60 | 75 | 517 | 60 | 414 |
| X65 | 77 | 531 | 65 | 448 |
| X70 | 82 | 565 | 70 | 483 |
| PSL 2 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Grade | Tensile Strength Mpa(psi) min | Yield Strength Mpa(psi) min | C. E. IMPACT ENERGY | |||||
| Psi X 1000 | Mpa | Psi X 1000 | Mpa | PCM | IIW | J | FT/LB | |
| B | 60 – 110 | 414 – 758 | 35 – 65 | 241 – 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X42 | 60 – 110 | 414 – 758 | 42 – 72 | 290 – 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X46 | 63 – 110 | 434 – 758 | 46 – 76 | 317 – 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X52 | 66 – 110 | 455 – 758 | 52 – 77 | 359 – 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X56 | 71 – 110 | 490 – 758 | 56 – 79 | 386 – 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X60 | 75 – 110 | 517 – 758 | 60 – 82 | 414 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X65 | 77 – 110 | 531 – 758 | 65 – 82 | 448 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X70 | 82 – 110 | 565 – 758 | 70 – 82 | 483 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X80 | 90 – 120 | 621 – 827 | 80 – 102 | 552 – 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
CS API 5L Welded Pipe Price List
Leoscor Alloys is one of the most competitive suppliers of pipes and tubes from India. Our prices for API 5L Welded Pipe are very competitive.
Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Leoscor Alloys maintains a stock of all standard items and can export them at best price for API 5L Welded Carbon Steel Pipe.
Welded API 5L Carbon Steel Pipe Stock Availability
We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for Carbon Steel API 5L Welded Pipe.
Why Buy API 5L Welded Pipe from Leoscor Alloys
Leoscor Alloys is a leading stockist, distributor, and supplier of API 5L Welded Pipe from India. With more than three decades of experience, we understand the steel industry deeply. We have huge experience of supplying to all major industries across the world. Our team of dedicated experts with stringent quality policy ensures that we supply best-in-class products meeting and exceeding our client’s expectations. Below are a few quick points about why buying from Leoscor Alloys will give you an undue advantage:
- Huge inventory of all standard sizes and grades.
- Distributors of all reputed origins and manufacturers.
- Strict quality control policies and highly experienced team.
- Strong logistics & delivery channels.
- Modern Infrastructure with huge storage capacity.
- An ISO 9000:2015 Certified Company.
