316 Stainless Steel Tubes Supplier and Exporter | UNS S31600, SUS 316 & DIN 1.4401 | Leoscor Alloy Pipes

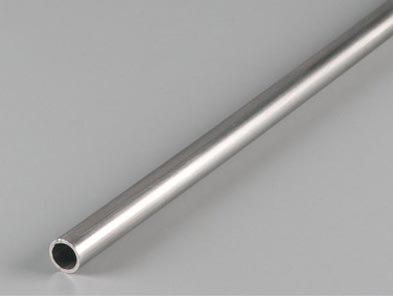

316 Stainless Steel Tubes are molybdenum-added austenitic stainless steel tubes known for their excellent corrosion resistance, strength, and durability in demanding industrial environments. The addition of molybdenum improves resistance against pitting and crevice corrosion, especially in chloride-containing and marine environments.
Leoscor Alloy Pipes is a trusted supplier, stockist, and exporter of SS 316 Tubes, offering seamless and welded tube solutions for industries requiring reliable performance in corrosive conditions. Our 316 stainless steel tubes are manufactured using quality raw materials and are available in different sizes, wall thicknesses, finishes, and shapes according to customer requirements.
316 Stainless Steel Tubes are molybdenum-bearing austenitic stainless steel tubes developed for applications where higher corrosion resistance is required compared with standard 304 stainless steel tubes. The presence of chromium, nickel, and molybdenum provides improved resistance against acids, saltwater, and chemical environments.
These tubes are widely used in applications involving pressure service and highly corrosive conditions such as acid processing, wastewater treatment, marine systems, and chemical processing equipment.
SUS 316 Tubes are available in seamless and welded forms, including ERW and EFW tubes. They are supplied in different shapes such as round, square, rectangular, oval, and hollow sections with finishes including cold drawn, hot rolled, cold rolled, annealed, pickled, and threaded forms.
Equivalent Names of 316 Stainless Steel Tubes
| Equivalent Name | Standard / Country | Explanation |
|---|---|---|
| UNS S31600 Tubes | USA (Unified Numbering System) | Material designation used for 316 stainless steel tubes. |
| SUS 316 Tubes | Japan (JIS Standard) | Japanese designation used for 316 stainless steel tubes. |
| DIN 1.4401 Tubes | Germany / Europe (DIN EN Standard) | European material number used for 316 stainless steel tubes. |
| X5CrNiMo17-12-2 Tubes | Europe (EN Chemical Designation) | Chemical composition designation representing 316 stainless steel grade. |
Key Features of 316 Stainless Steel Tubes
- Excellent Corrosion Resistance: Provides improved protection against pitting and crevice corrosion.
- Molybdenum Addition: Enhances corrosion resistance in chloride and marine environments.
- Good Strength: Suitable for pressure and structural applications.
- Excellent Durability: Performs reliably in demanding industrial conditions.
- Good Weldability: Available in welded tube constructions for fabrication requirements.
- Multiple Forms Available: Supplied in seamless, welded, ERW, and EFW forms.
- Custom Dimensions: Available in different sizes, shapes, and finishes.
SS 316 Tubes Specifications
Standard specifications for SS 316 Tubes. If any specification is not mentioned here, you can contact us. We also manufacture and export custom specifications as per client’s requirements.
| Specifications | Details |
|---|---|
| Specifications | ASTM A213 / ASME SA213 / ASTM A249 / ASTM A269 |
| Dimensions | ASTM, ASME and API |
| SS 316 Tubes | 1/8″ NB to 30″ NB |
| Thickness | 0.35 mm to 6.35 mm OD, with thickness ranging from 0.1 mm to 1.2 mm. |
| Schedule | SCH 20, SCH 30, SCH 40, STD, SCH 80, XS, SCH 60, SCH 80, SCH 120, SCH 140, SCH 160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
| Form | Round, Square, Rectangular, Hydraulic Tubes |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded |
316 Stainless Steel Seamless Tubes - Industries & Applications
Our pipes and tubes are used in a wide range of applications and various industries. Below are a few of them:
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Get Quote for Your Requirement
Contact Leoscor Alloys Pipes for high quality industrial pipes and tubes. Mail- info@leoscoralloypipes.com
Types of Stainless Steel 316 Tubes
| Stainless Steel 316 Welded Tubes | 316 SS Welded Tubes |
| 316 Stainless Steel Seamless Tubes | SS 316 Seamless Tubes |
| SS 316 ERW Tubes | 316 Stainless Steel ERW Tubes |
| 316 SS Fabricated Tubes | Stainless Steel 316 Fabricated Tubes |
| SS 316 LSAW Tubes | 316 Stainless Steel LSAW Tubes |
| 316 Stainless Steel Polished Tubes | SS 316 Polished Tubes |
| Stainless Steel 316 Cold Drawn Tubes | 316 SS Cold Drawn Tubes |
| 316 SS Hot Rolled Tubes | Stainless Steel 316 Hot Rolled Tubes |
| SS 316 Cold Rolled Tubes | 316 Stainless Steel Cold Rolled Tubes |
| Stainless Steel 316 Square Tubes | 316 SS Round Tubes |
| 316 SS Hexagonal Tubes | Stainless Steel 316 Tubes |
316 SS Seamless Tubes Chemical Composition
| Grade | 316 | |
|---|---|---|
| min | max | |
| C | – | 0.035 |
| Mn | – | 2.0 |
| Si | – | 0.75 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 16.0 | 18.0 |
| Mo | 2.0 | 3.0 |
| Ni | 10.0 | 14.0 |
| N | – | – |
ASTM A213 SS 316 Welded Tubes Mechanical Properties
| Grade | 316 | |
|---|---|---|
| Tensile Strength (MPa) min | 515 | |
| Yield Strength 0.2% Proof (MPa) min | 205 | |
| Elongation (% in 50mm) min | 40 | |
| Hardness | Rockwell B (HR B) max | 95 |
| Rockwell B (HR B) max | 217 | |
Stainless Steel 316 Tubes Physical Properties
| Grade | 316 | |
|---|---|---|
| Density (kg/m3) | 7750 | |
| Elastic Modulus (GPa) | 200 | |
| Mean Coefficient of Thermal Expansion (m/m/0C) | 0-1000C | 15.9 |
| 0-3150C | 16.2 | |
| 0-5380C | 17.0 | |
| Thermal Conductivity (W/m.K) | at 1000C | 14.2 |
| at 5000C | 18.7 | |
| Specific Heat 0-1000C (J/kg.K) | 500 | |
| Electrical Resistivity (n.m) | 720 | |
Stainless Steel 316 Tubes Price List
Leoscor Alloys is one of the most competitive suppliers of pipes and tubes from India. Our prices for SS 316 Tubes are very competitive.
Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Leoscor Alloys maintains a stock of all standard items and can export them at best price for 316 Stainless Steel Seamless and Welded Tubes.
ASTM A213 SS 316 Tubing Stock Availability
We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for Stainless Steel 316 Tubes.
Why Buy 316 Stainless Steel Tubes from Leoscor Alloys
Leoscor Alloys is a leading stockist, distributor, and supplier of 316 Stainless Steel Tubes from India. With more than three decades of experience, we understand the steel industry deeply. We have huge experience of supplying to all major industries across the world. Our team of dedicated experts with stringent quality policy ensures that we supply best-in-class products meeting and exceeding our client’s expectations. Below are a few quick points about why buying from Leoscor Alloys will give you an undue advantage:
- Huge inventory of all standard sizes and grades.
- Distributors of all reputed origins and manufacturers.
- Strict quality control policies and highly experienced team.
- Strong logistics & delivery channels.
- Modern Infrastructure with huge storage capacity.
- An ISO 9000:2015 Certified Company.
